Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Aiset
  • Model Number: N5-WL-6000
  • Usage: Industrial
  • Theory: Temperature Controller
  • Accuracy: 0.1
  • Temperature range: 0~400
  • Size: 48*48, 72*72, 96*48
  • Certificate: ISO9001/CE
  • Display: Dual Lines 4-digit LED
  • Sensor Inputs: Thermocouple inputs, Pt inputs
  • Control Output: Relay output, Voltage output (for driving SSR)

Packaging & Delivery

Packaging Details English Neutral Carton
Delivery Time 3-5 days upon payment





Overview

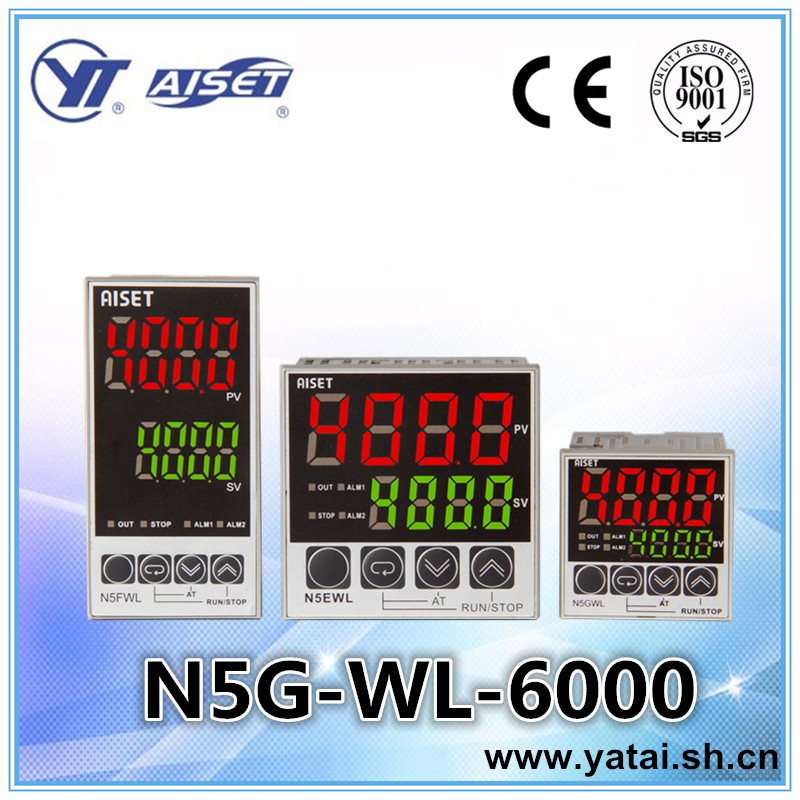

N5-WL-6000 series digital display controller is an economical intelligent digital display controller developing based on the 8000 series. This series of controller also adopts the advanced new techniques and crafts of the single chip, SMT surface paste mounting, PID auto-tuning algorithm, electromagnetism compatible design, etc.





  • Easy to Read

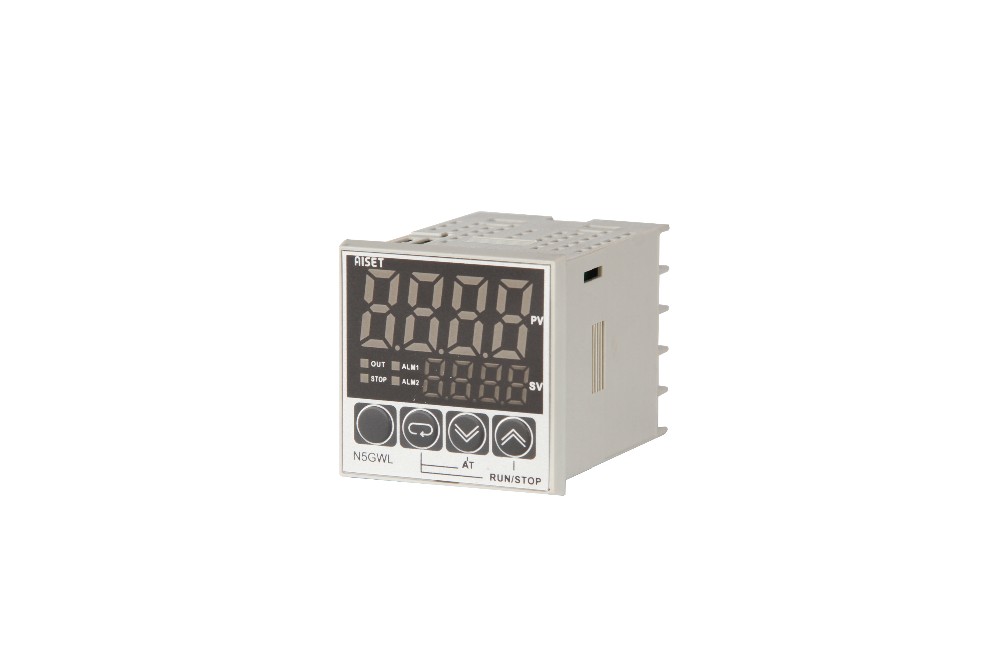

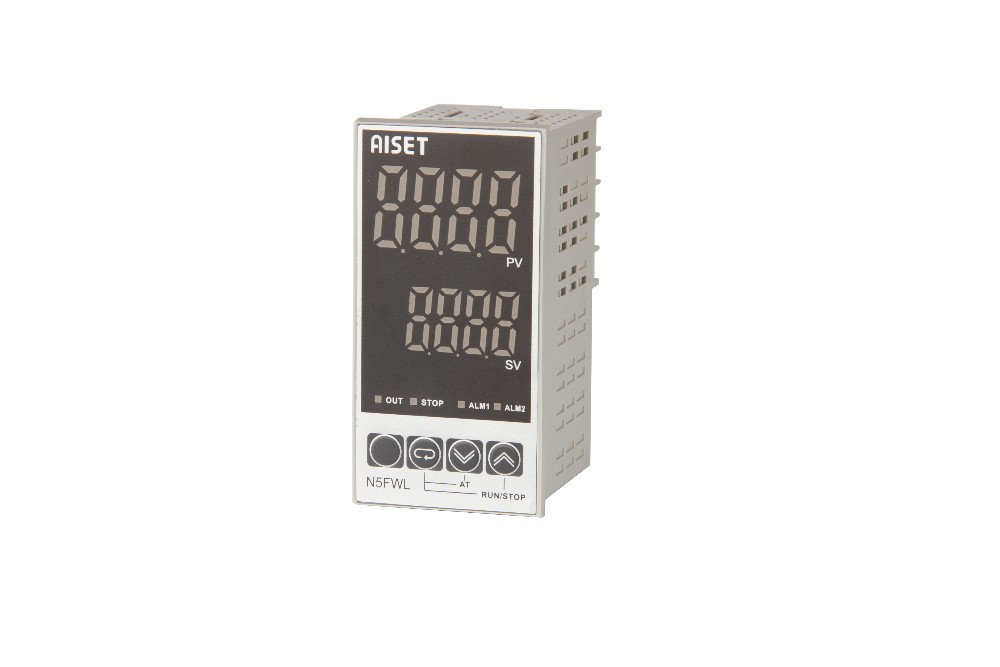

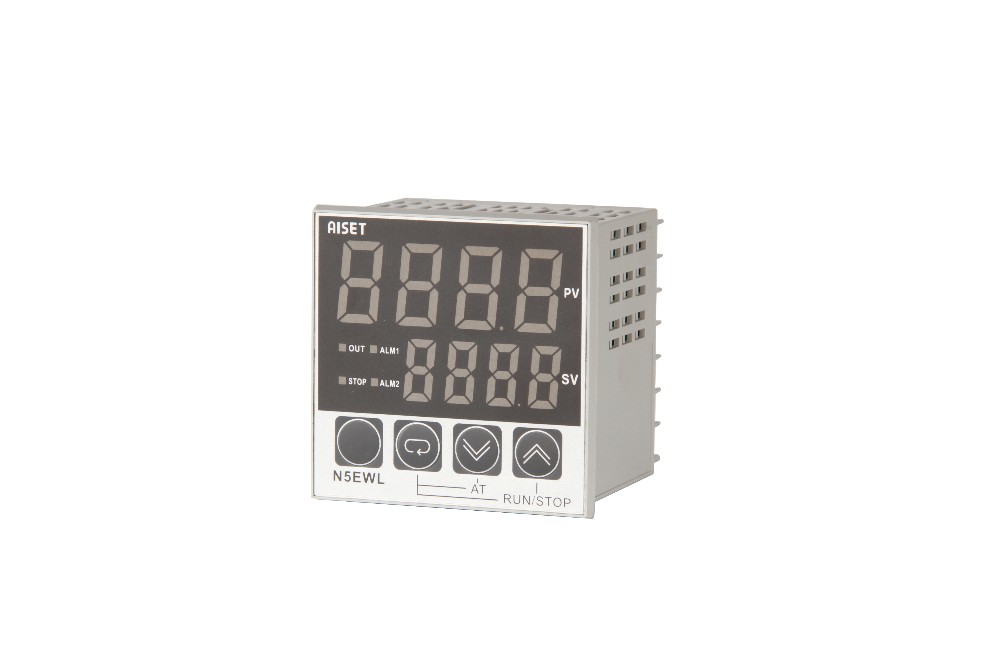

    (Character Height: N5GWL: 16.2 mm(PV), N5EWL: 20 mm (PV), N5FWL: 20 mm (PV)).

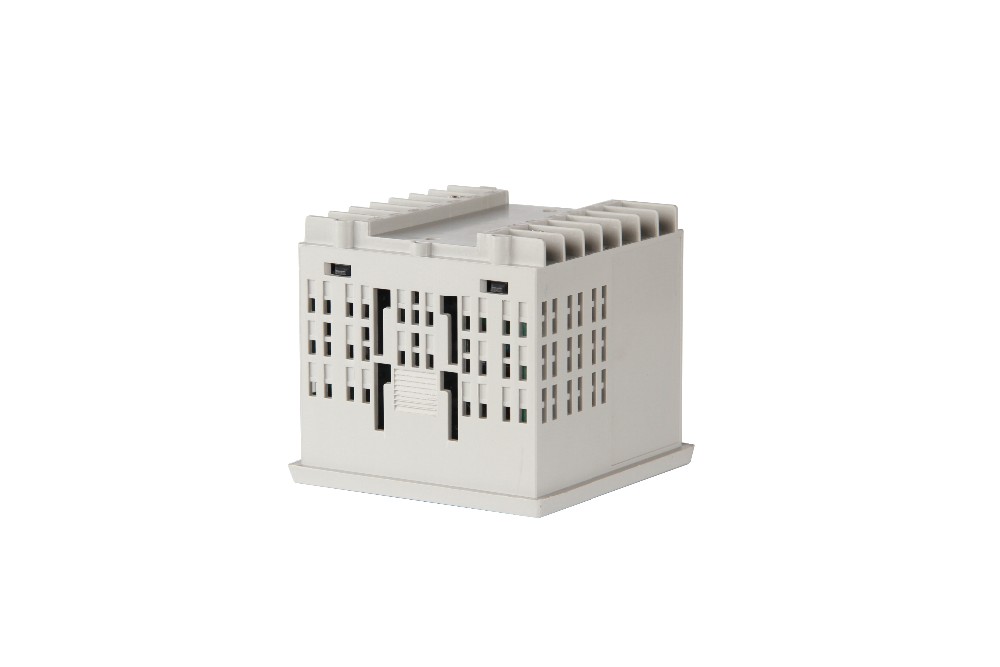

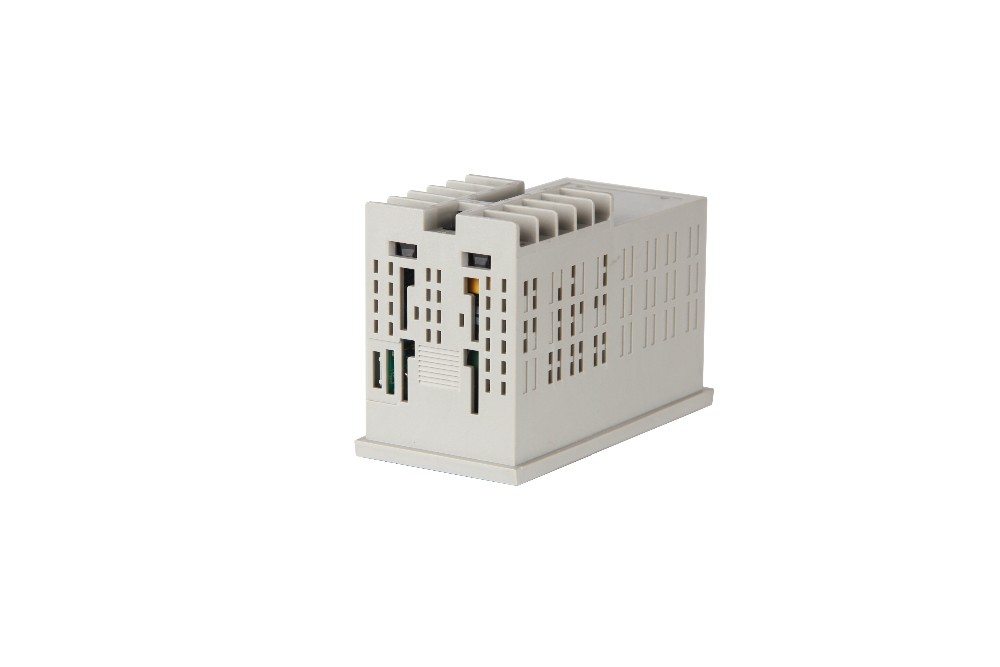

  • Depth beyond front panel: Only 60 mm.

  • Fewer parameters for simple setup.

  • Faster sampling at 250 ms.
  • Adopt SMT technology, PID auto-tuning algorithm, electromagnetism compatible design in the combination of hardware and software.








Power Supply Voltage 100 to 240 VAC, 50/60 Hz
Operating voltage range 85% to 110% of rated supply voltage
Power consumption 3.5 VA
Sensor input

Models with thermocouple inputs
Thermocouple: K, J, T, R, or S

Models with platinum resistance thermometer inputs
Platinum resistance thermometer: Pt100

Control
output

Relay output:  SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum load: 5 V, 10 mA

Voltage output
(for driving
SSR)

Output voltage: 12 VDC +25%/-15% (PNP), max. load current: 21 mA, with short-circuit protection circuit
Alarm output SPST-NO, 250 VAC, 1 A (resistive load), electrical life: 100,000 operations, minimum load: 5 V, 10 mA
Control method ON/OFF control or 2-PID control (with auto-tuning)
Setting method Digital setting using front panel keys
Indication method

7-segment digital display and individual indicators

Character Height: N5GWL: 16.2 mm(PV), N5EWL: 20 mm (PV), N5FWL: 20 mm (PV)

Other functions

Temperature input shift, run/stop, protection functions, etc.

Ambient operating
temperature

-10 to 55℃ (with no icing or condensation)
Ambient operating humidity 25% to 85%
Storage temperature -25 to 65
(with no icing or condensation)
